Get the most out of your mic preamps. Use your preamps as line-level saturation devices, or pad their output so you can drive them harder.

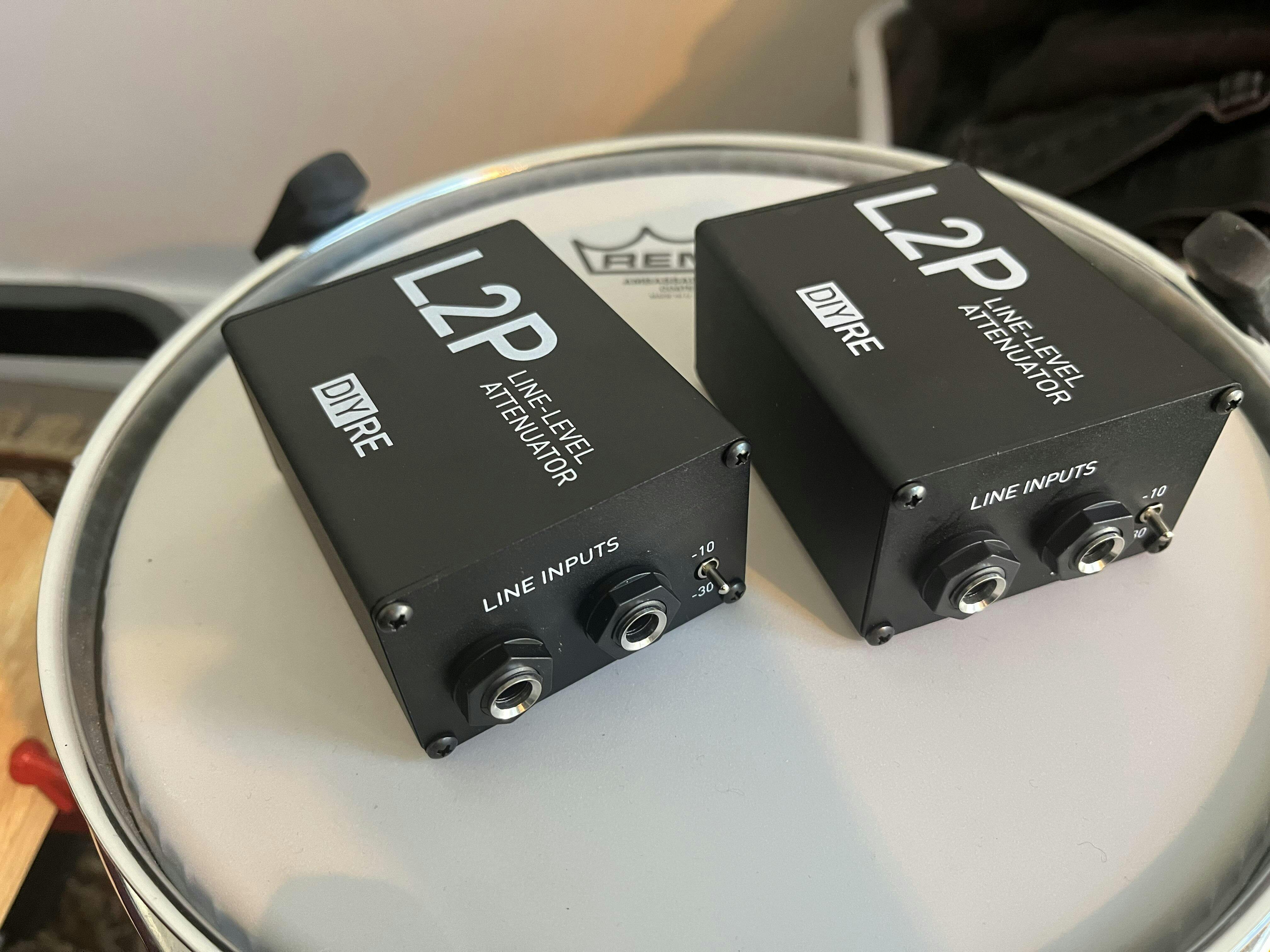

The L2P is a two-channel, balanced line/mic pad with two attenuation options. The -10dB setting is perfect for padding the output of mic preamps so you can run them hot without clipping your converters. The -30dB setting is a "line-to-mic" pad that allows you to run tracks directly from your audio interface or mixer to the inputs of your preamps.
Features:
- Selectable -10dB or -30dB pads
- Two channels
- Excellent matching between channels for stereo operation
- Line-to-mic pad
| Input Impedance | 8.1k/5.5k (line out / mic out) |
| Output Impedance | 2.7k/150 |
| Attenuation | 10dB/30dB, selectable |
| Noise Floor | -113dBu/-115dBu (line out / mic out) |
Kit Contents:
Customer Reviews
Great little box to allow you to send sound from your interface to external preamps, or to reduce gain from outboard processing before coming back into your DAW.
I have two.
They were easy to make.
This was a fun, quick project. I put this together in about 20 minutes and it does exactly what it’s supposed to do. Literally doesn’t have a “sound” to it. Super transparent, no noise either. Good stuff!
Eventually you will need or at least want one of these if you have a home or pro studio. It's a simple circuit and fun to build too.
As a long-time musician realising the joys of tinkering, audio engineering, live sound, recording and self-producing, DIYRE RULES. Peterson explains everything really well, prices are great, device's simplicity, ruggedness and functionality show a lot of thought and care for the end-user and the transparency is incredibly refreshing. Nothing proprietary here, baby!! I use my Re-Amp box for pedals/synths/weird gear every day and the Line Attenuator has been super handy for hot signals in my growing home studio. I plan on soldering together my own D-Sub loom to play around with the Passive Mixer down the track, too many rewarding projects to count!
Get after it, you won't regret it!
Brings down a line level signal to mic level. Easy build with very good instructions. If I can solder and assemble this, you can too heh.
